MOST Grid Move

A Control system for grid movement (square step movement) with all possible properties of the grid movement like 8-directions movement, speed, obstacles detection, direction correction system, stop point snap, animation control, camera following system (with rotation correction), and much more.

Explosion Template uses MOST_GridMovement

The system can detect obstacles (layer mask can be controlled) so the character stops when it is blocked by another object.

also, it comes with a Direction corrector system that makes the character correct its movement direction when the input direction is blocked by obstacles.

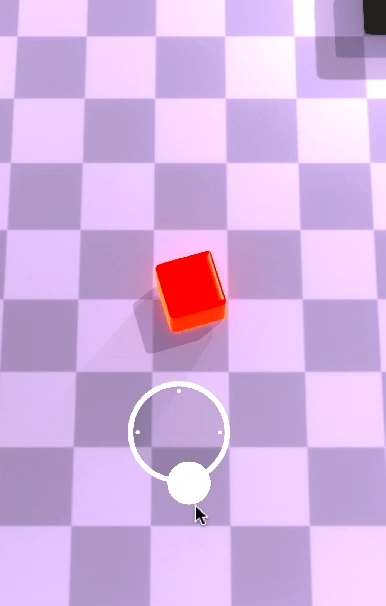

4-Directions Movement using MOST_GridMovement + MOST_Controller

8-Directions Movement using MOST_GridMovement + MOST_Controller

• This System requires an Input Controller to receive commands (MOST Controller or any other input system)

• All examples in MOST IN ONE use MOST Controller as the input source.

• It's much better this way to be easier to modify, and if you want to use another Input system instead of MOST Controller.

• You will find the "Input Getter" section inside the .cs file contains all functions that receive input commands for this system. Check the API.

API reference

All public properties can be updated at runtime, and the changes will be set immediately.

// Next to each line shows the return and set data Type

// Functions
// main behavior enables and disables the system
Most_GridMovement.EnableState(bool Enable);

__________________ Activate/Start __________________
// Start Moving function, call it to enable/start moving
// You can call it if the input doesn't provide direction yet
// example.. when touching the screen without moving the finger
// This method will move the object depending on its rotation
Most_GridMovement.OnInputDetected();

// Optional to call... you can just call OnInputUpdated() to start moving

__________________ Direction Update __________________
// Call it to update object direction // on controller direction updated
Most_GridMovement.OnInputUpdated(Vector2 direction);

__________________ On Stop Moving __________________
// the default value for exceed = false
Most_GridMovement.OnInputReleased([Optional] bool exceed);
// Call it to stop the object from moving // on controller release

//_______________________________________________________________//

// ReadOnly variable... Check if the Move system is active or not
Most_GridMovement.Enable; return bool

// ReadOnly variable... Quick check if the object is moving right now or not
Most_GridMovement.IsMoving; return bool

// Controls the moving part of the system, whether it enables (sends data) or not
Most_GridMovement.EnableMove; return or set bool

// Controls the rotation part of the system if it enables (sends data) or not
Most_GridMovement.EnableRotation; return or set bool

// the target direction of the movement system
Most_GridMovement.MoveAxis return or set (TargetAxis.X_Y or TargetAxis.X_Z) ;

// Grid size for MoveAxis
Most_GridMovement.GridSize; return or set float

// Movement Speed of the object
Most_GridMovement.Speed; return or set float

// Rotation speed of the object
Most_GridMovement.RotationSpeed; return or set float
